NuStep T4r Product Details

  • Key Features
  • Specs
  • Videos
  • Documentation
  • FAQ

Key Features

  • Smooth natural movement, easy on joints
  • User-controlled step length of 2”-8.5” (5-22 cm)
  • Fully connected motion between arms and legs allows users to engage their total body or use only their arms or legs
  • Adjustable arm and seat positions
  • 360-degree swivel seat provides easy access from any angle
  • Sturdy grab ring helps users get on easily
  • StrideLockTM allows user to lock arm handles and leg pedals when getting on and off
  • Easy-to-read, easy-to-use display panel
  • Resistance lever located next to the seat; 10 levels of resistance
  • Media shelf for tablet
  • Supports users weighing up to 400 lbs.
  • The NuStep T4r is self-powered


  • General
    • Machine footprint 60” long x 27” wide x 44″ tall (152 x 69 x 112 cm)
    • Machine weight: 210 lbs. (95 kg)
    • Fits users from 4’6″-6’4″ (137-193 cm)
    • Accommodates users up to 400 lbs. (181 kg)
    • Seat slides and adjusts smoothly with 15” (38 cm) forward/backward seat adjustment range
    • Anodized aluminum arms with 15” (38 cm) arm adjustment range
    • Biomechanically correct workout position
    • Contralateral movement arm linked with opposite leg
  • Resistance System
    • Quiet, frictionless, hybrid generator brake system
    • User power output from 0–800 watts
    • All-belt drive
    • Long-life, high-grade sealed bearings
  • Frame
    • Durable, heavy-duty welded steel frame
    • Powder-coated frame and zinc-plated components resist rust
    • Four-point contact with the floor and leveling feet increase stability
    • Strong, impact-resistant poly-styrene cover is easy to clean
    • Lift unit with front handle and roll on rear wheels or use optional NuStep transporter device
  • Display

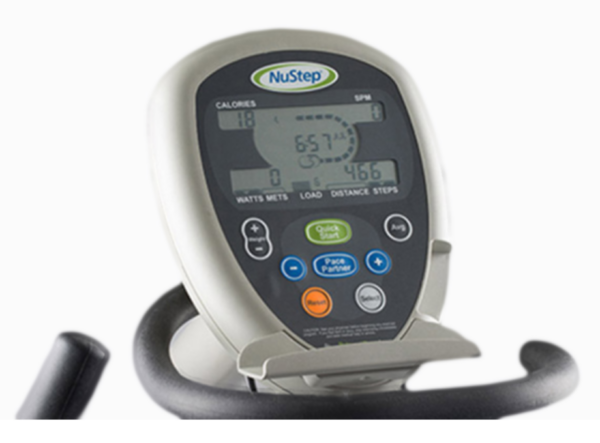

    • Monochrome display shows SPM, Watts, METS, Time, Steps, Distance, Calories, Load Level and Seat Position
    • 2 workout programs
    • English or metric measurement system
    • Cordless design uses 4 AA alkaline batteries (NiMH rechargeable batteries may also be used)
    • Export workout and machine data via USB
  • U.S. Patents: 6,042,518; 6,361,479; 6,666,799; and patents pending


Product Video:


    • Does the NuStep trainer come fully assembled?
      Yes, each NuStep cross trainer comes fully assembled.
    • Is the NuStep cross trainer shipped in a crate or multiple boxes?
      Each NuStep is packaged in a single crate.
    • Once I place an order, how long will it take to receive my NuStep cross trainer?
      Most orders are shipped within one week of an order being placed. Delivery can generally be expected in two to three weeks.
    • What delivery options do you offer?
      We offer two shipping and delivery options: full-service and dock-to-dock.

      • Full service shipping and delivery: Includes delivery of your pre-assembled NuStep trainer, installation in the preferred location in your home/business and removal of all packaging.
      • Dock-to-dock shipping and delivery: Includes freight transportation of your pre-assembled NuStep trainer to your address and delivery to a loading dock or to your driveway or curb.  You’ll be responsible for:
        • moving the machine from the delivery point to inside your home/business;
        • minimal assembly;
        • and disposing of all packaging material.
    • How much does shipping cost?
      Shipping costs may vary depending on the product selected, delivery address and specific service requirements. For multiple-unit shipments or expedited service, shipping prices may vary.
    • Can I move a NuStep by myself?
      Because of the weight and size of our machines, we recommend at least two adults assist in moving each NuStep to their final location. We also sell a Transporter which makes moving the machine easier.
    • Do you offer financing?
      Yes, we offer financing for consumer customers. Learn more.
    • Can I rent a NuStep?
      Sorry, we currently do not currently lease or rent NuStep cross trainers.
