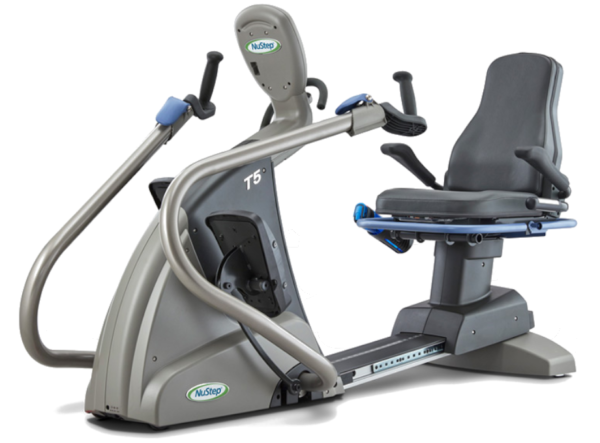

NuStep T5 Product Details

  • Videos
  • Manuals
  • FAQ


  • Low, 3-4 in. (8-10 cm) step-through design makes getting on and off easy
  • Fully-connected motion between arms and legs allows users to engage their total body or use only their arms or legs
  • Large LCD color display; eight workout programs
  • Easy startup with no button press required
  • Push-button resistance control, 15 resistance levels

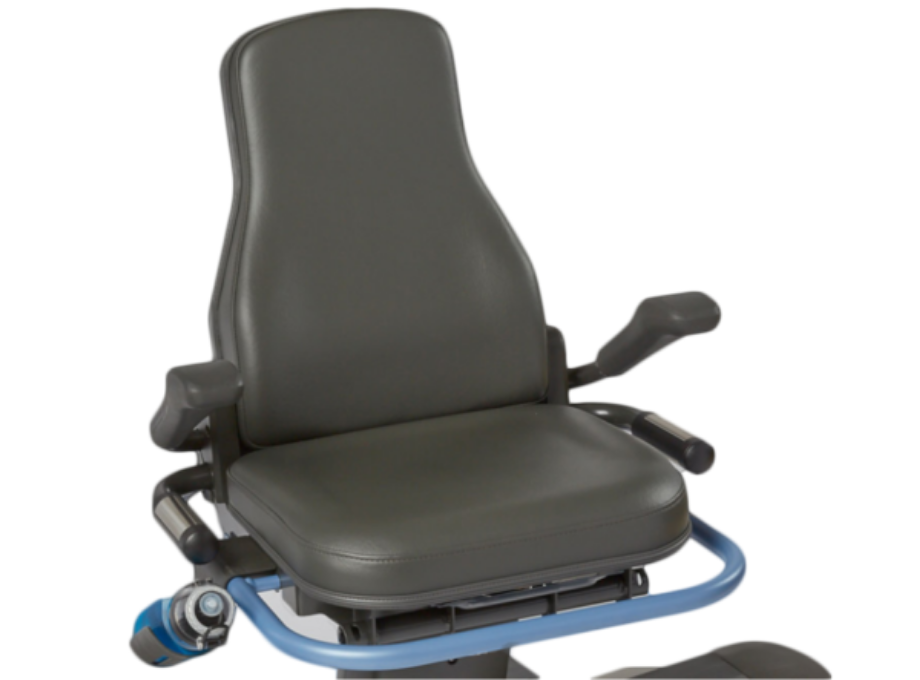

  • Ergonomically designed padded seat has contoured back support
  • 360-degree swivel seat (locks every 45 degrees) makes getting on and off easy, especially for those with limited mobility
  • Contact HeartRate handles on the seat, as well as HeartRate Telemetry option with Polar Accessory

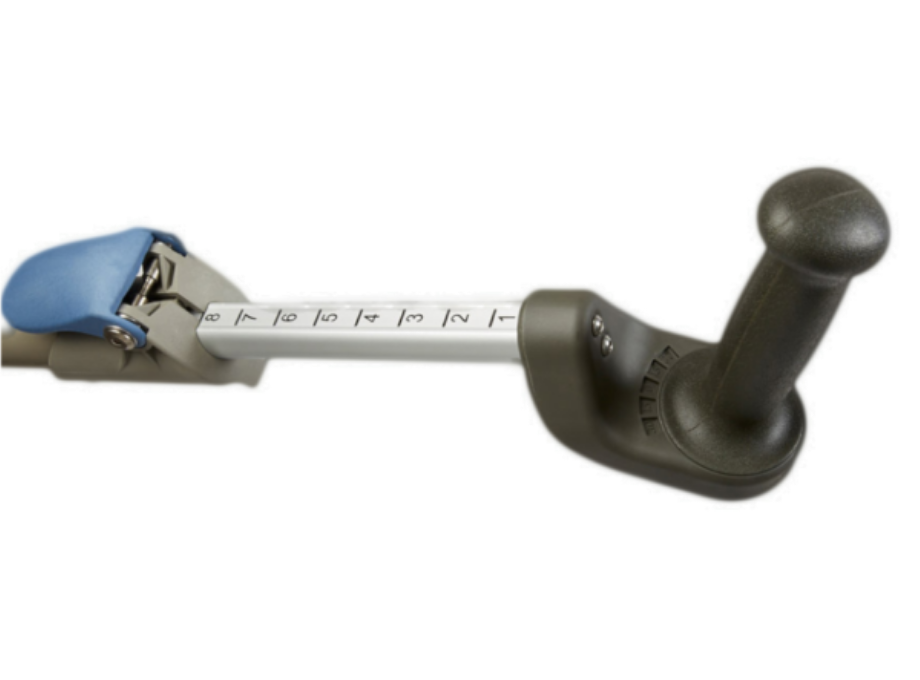

  • Rubber hand grips with easy-to-adjust clamshell release

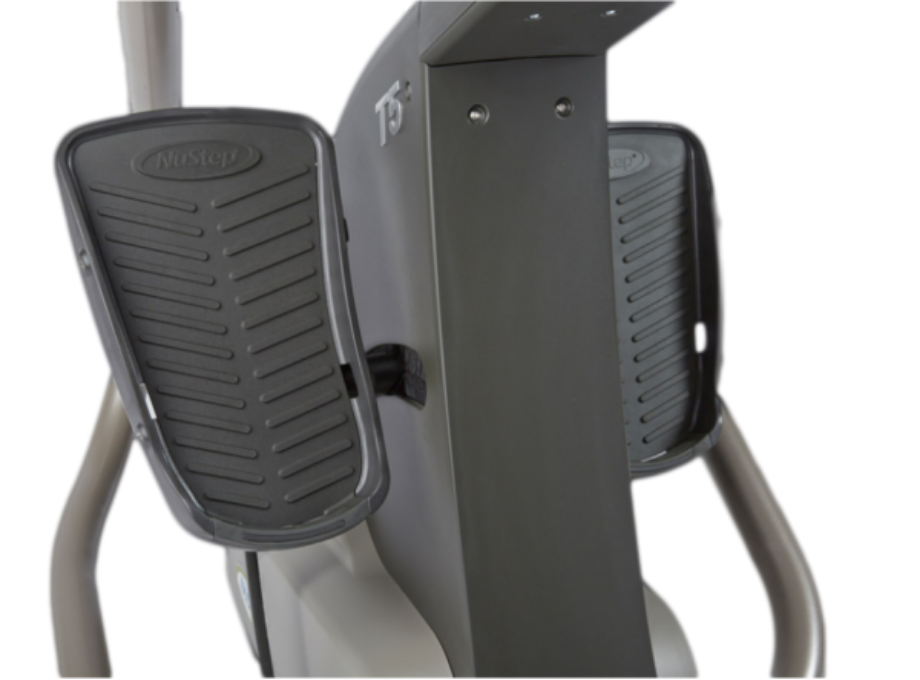

  • Large, durable molded plastic foot pedals with rubber non-slip insert
  • Supports users weighing up to 500 lbs.
  • Battery powered


  • General
    • Machine footprint 73” long x 29” wide x 46″ tall (185 x 74 x 117 cm)
    • Machine weight: 285 lbs. (129 kg)
    • Fits users from 4’6″-6’7″ (137-200 cm)
    • Accommodates users up to 500 lbs. (227 kg)
    • Seat slides and adjusts smoothly with 18” (46 cm) forward/backward seat adjustment range
    • Anodized aluminum arms with 18” (46 cm) arm adjustment range
    • Biomechanically correct workout position
    • Contralateral movement arm linked with opposite leg
  • Resistance System
    • Quiet, frictionless, hybrid generator brake system
    • User power output from 5–1400 watts
    • Quiet long-life all-belt drive
    • Long-life, high-grade sealed bearings
  • Frame
    • Durable, heavy-duty welded steel frame
    • Powder-coated frame and zinc-plated components resist rust
    • Four-point contact with the floor and leveling feet increase stability
    • Strong, impact-resistant poly-styrene cover is easy to clean

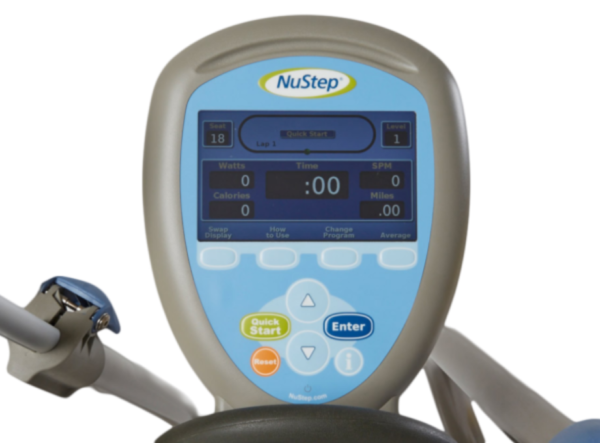

  • Display
    • Comprehensive data readouts including resistance level and seat position
    • Goal setting in time, distance and calories
    • 8 workout programs including 5 profiles
    • Target heart rate control program
    • Constant speed program (Isokinetic)
    • Constant power program
    • Two exercise testing protocol programs
    • On the fly programming
    • Motivational aides
    • Manager mode to customize console
    • Info button with context sensitive help
    • Audible feedback with volume control
    • Multiple display languages
    • Repeat last workout feature
    • Workout tracking by user ID
    • User data tracking, up to 200 users
    • Export workout and machine data via USB
    • Battery saver mode
  • U.S. Patents: 6,042,518; 6,361,479; 7,775,942; D610,635


Product Video:


  • Does the NuStep trainer come fully assembled?
    Yes, each NuStep cross trainer comes fully assembled.
  • Is the NuStep cross trainer shipped in a crate or multiple boxes?
    Each NuStep is packaged in a single crate.
  • Once I place an order, how long will it take to receive my NuStep cross trainer?
    Most orders are shipped within one week of an order being placed. Delivery can generally be expected in two to three weeks.
  • What delivery options do you offer?
    We offer two shipping and delivery options: full-service and dock-to-dock.

    • Full service shipping and delivery: Includes delivery of your pre-assembled NuStep trainer, installation in the preferred location in your home/business and removal of all packaging.
    • Dock-to-dock shipping and delivery: Includes freight transportation of your pre-assembled NuStep trainer to your address and delivery to a loading dock or to your driveway or curb.  You’ll be responsible for:
      • moving the machine from the delivery point to inside your home/business;
      • minimal assembly;
      • and disposing of all packaging material.
  • How much does shipping cost?
    Shipping costs may vary depending on the product selected, delivery address and specific service requirements. For multiple-unit shipments or expedited service, shipping prices may vary.
  • Can I move a NuStep by myself?
    Because of the weight and size of our machines, we recommend at least two adults assist in moving each NuStep to their final location. We also sell a Transporter which makes moving the machine easier.
  • Do you offer financing?
    Yes, we offer financing for consumer customers. Learn more.
  • Can I rent a NuStep?
    Sorry, we currently do not currently lease or rent NuStep cross trainers.
