NuStep T4r Product Details

  • Key Features
  • Specs
  • Videos
  • Documentation
  • FAQ

Key Features

Product Features

    • Inclusive design, adjustable features and 400 lb weight capacity


    • Smooth-stepping motion simulates walking


    • Low-inertia startup and user-controlled step length


    • Adjustable resistance levels


    • Easy to access and easy to use

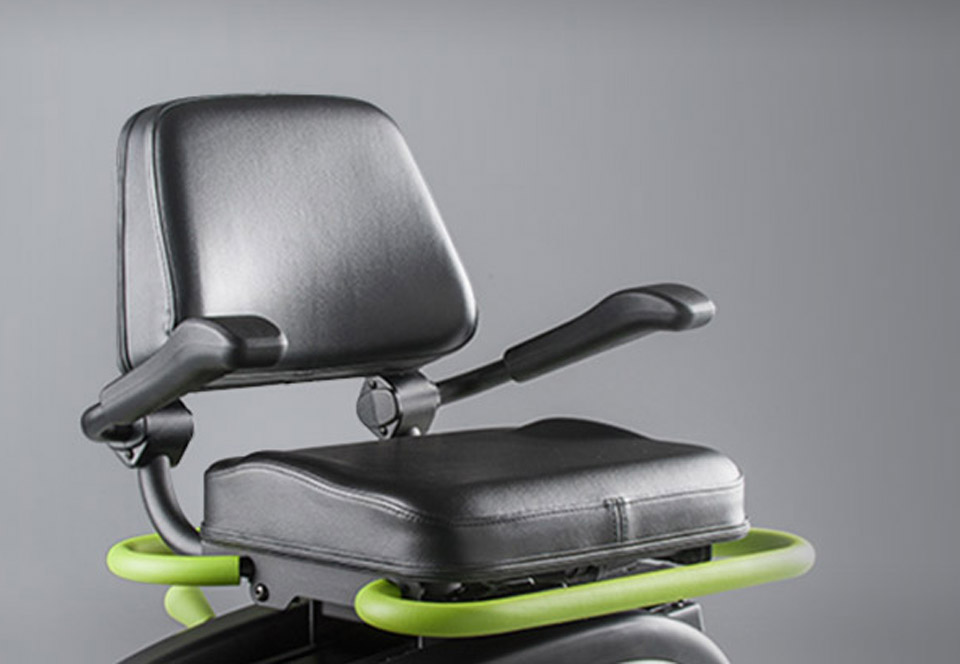

    • 360° swivel seat, locking feature and hand grip


    • Multiple workout programs


User Benefits

    • Accommodates users of virtually any size, fitness level or functional ability


    • Provides low impact exercise


    • Supports deconditioned users


    • Allows users to adapt workload as they progress


    • Inspires user confidence and independence


    • Promotes safety and stability


    • Allows users to create personalized workouts



  • General
    • Machine footprint 60” long x 27” wide x 44″ tall (152 x 69 x 112 cm)
    • Machine weight: 210 lbs. (95 kg)
    • Fits users from 4’6″-6’4″ (137-193 cm)
    • Accommodates users up to 400 lbs. (181 kg)
    • Seat slides and adjusts smoothly with 15” (38 cm) forward/backward seat adjustment range

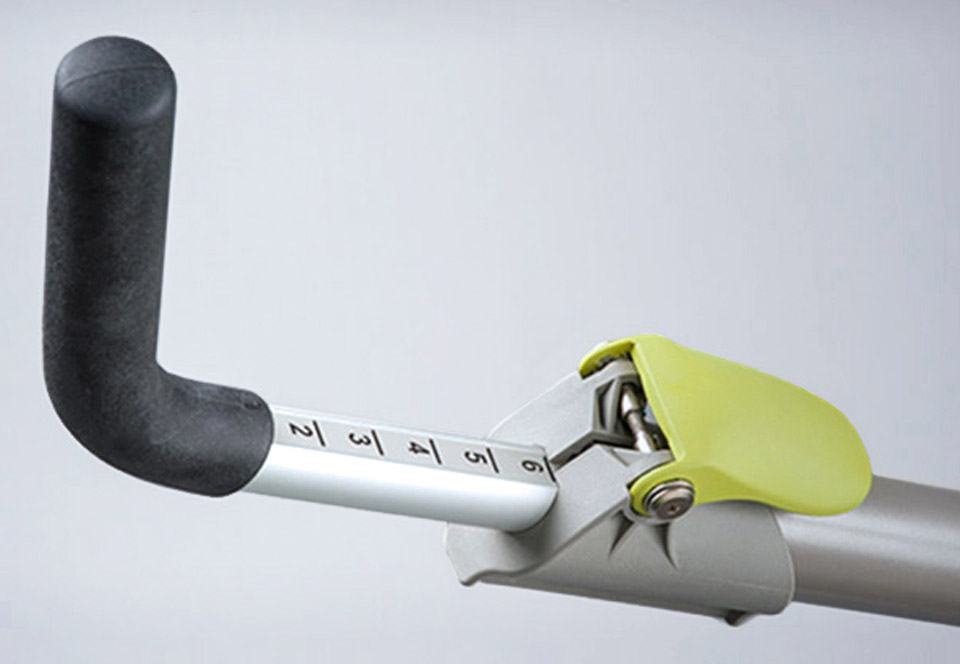

    • Anodized aluminum arms with 15” (38 cm) arm adjustment range
    • Biomechanically correct workout position
    • Contralateral movement arm linked with opposite leg
  • Resistance System
    • Quiet, frictionless, hybrid generator brake system
    • User power output from 0–800 watts
    • All-belt drive
    • Long-life, high-grade sealed bearings
  • Frame
    • Durable, heavy-duty welded steel frame
    • Powder-coated frame and zinc-plated components resist rust
    • Four-point contact with the floor and leveling feet increase stability
    • Strong, impact-resistant poly-styrene cover is easy to clean
    • Lift unit with front handle and roll on rear wheels or use optional NuStep transporter device
  • Display
    • Monochrome display shows SPM, Watts, METS, Time, Steps, Distance, Calories, Load Level and Seat Position
    • 2 workout programs
    • English or metric measurement system
    • Cordless design uses 4 AA alkaline batteries (NiMH rechargeable batteries may also be used)
    • Export workout and machine data via USB
  • U.S. Patents: 6,042,518; 6,361,479; 6,666,799; and patents pending
